Select the control board by chassis class and performance target. CCU-N-ALDER covers the full UCP family; CCU-I-TGL is for UCP2120 and UCP4131.
Unified
Communication
Platform

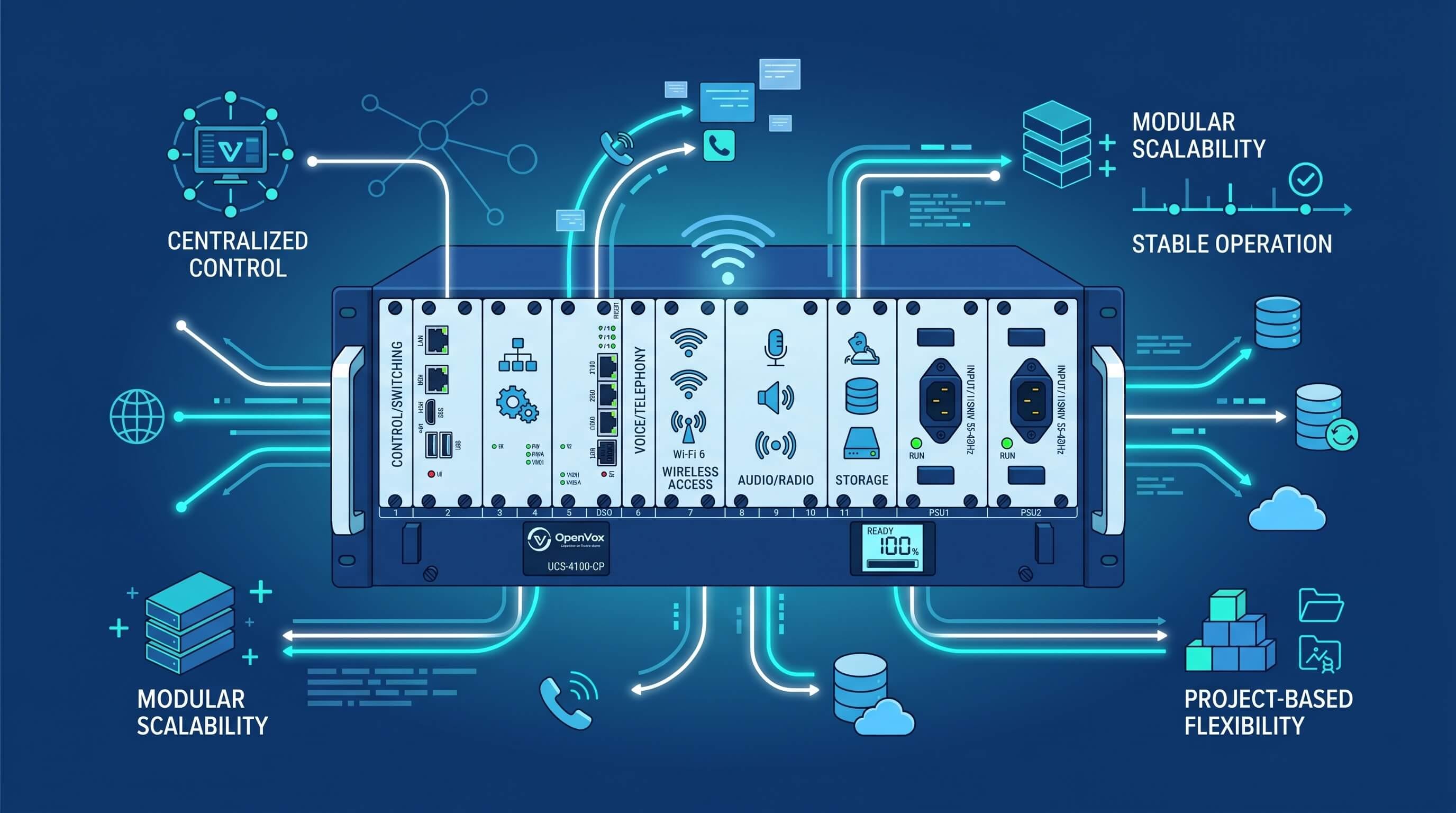

UCP is a modular unified communication platform solution that brings control, switching, telephony interfaces, wireless access, audio, radio, and storage modules into one chassis system. It helps integrators build stable, reliable communication platforms that can be configured around each project.
Choose the UCP chassis before choosing interface boards.
A one-control, one-service-slot UCP chassis for small offices, pilot deployments, and dedicated gateway nodes that need modular communications in a compact form factor.
- Form Factor
- Desktop
- Control Slots
- 1
- Service Slots
- 1
- Network Switch Ports
- Built-in 2 x Gigabit Ethernet ports
- Storage Expansion
- No
- RAID Support
- No
- Power Design
- Single power input
- Power Input
- DC input
- Max Power Consumption
- < 36 W
Map chassis slots, control boards, service boards, and storage before choosing a UCP system.
Confirm chassis capacity, control and switching architecture, service access, and storage or RAID requirements before configuring boards.
UCP1202 provides 2 built-in Gigabit Ethernet ports. Rackmount chassis use CSU-F or CSU-G boards for dedicated switching expansion.
Combine service boards for the required access mix: analog endpoints, wireless trunks, E1/T1/J1 links, radio dispatch, magneto lines, and audio control.
Use SEU for local SATA expansion on supported chassis, and specify RSU RAID 1 for mirrored storage on UCP4131.
Match each deployment scale to the right UCP chassis.
Start with physical scale, service-slot capacity, switching, power redundancy, and storage protection, then define the board mix for the final UCP system.

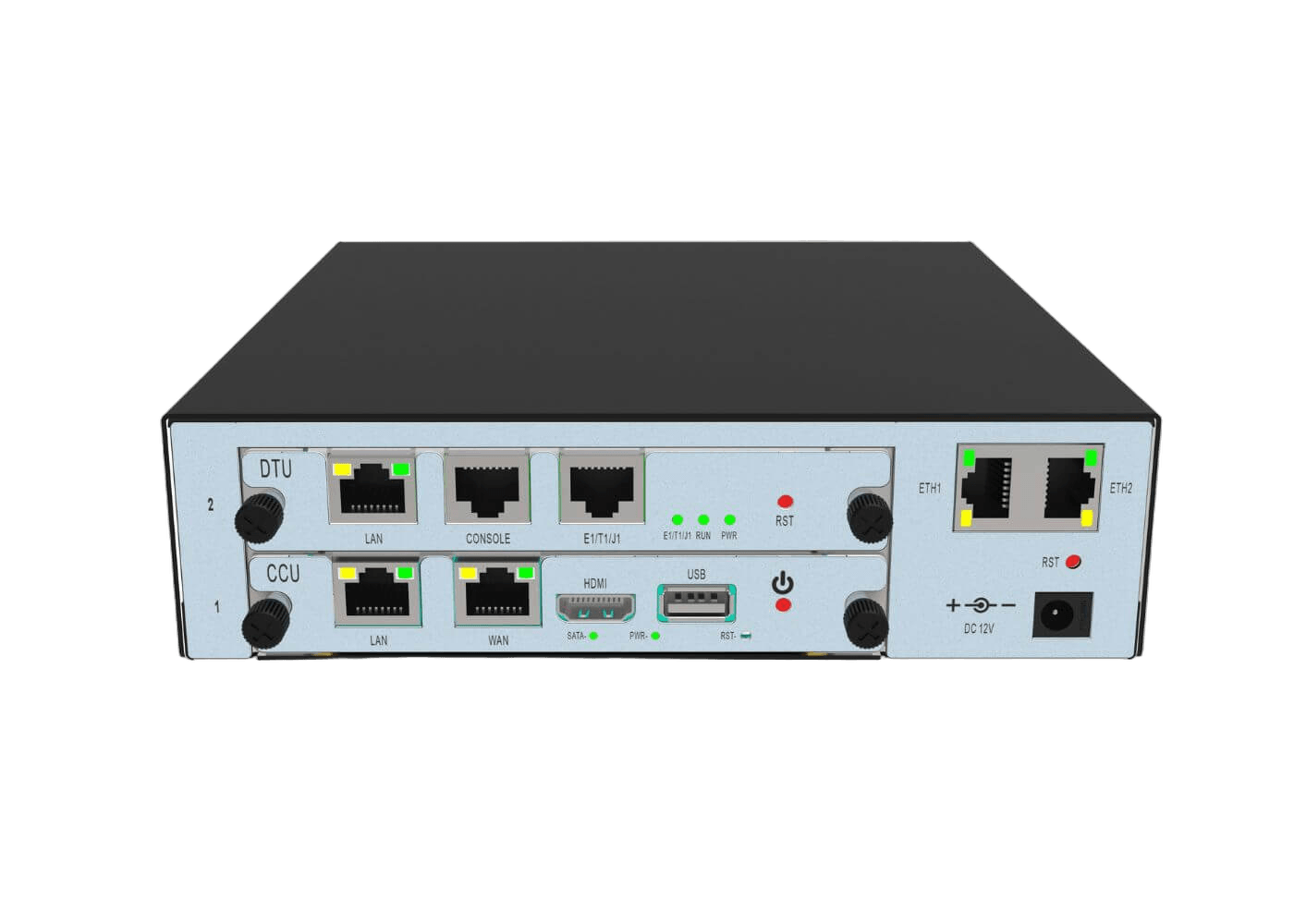

UCP1202
Desktop chassis for compact access sites that need one control board, one service board, and two built-in Gigabit Ethernet ports without rack infrastructure.
- Compact edge chassis
- 1 control / 1 service slot
- 2 built-in Gigabit Ethernet ports

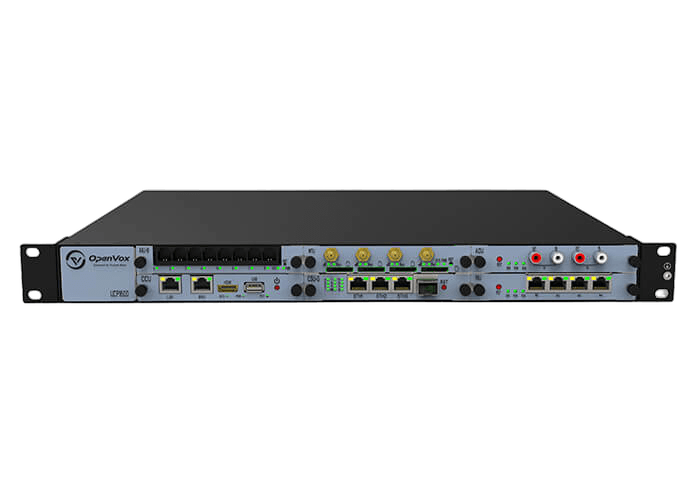

UCP1600
1U rackmount chassis for branch communication systems that require multiple service boards, CSU switching expansion, and optional SEU storage in limited rack space.
- Branch rack platform
- 4 service-board slots
- CSU switching + SEU storage

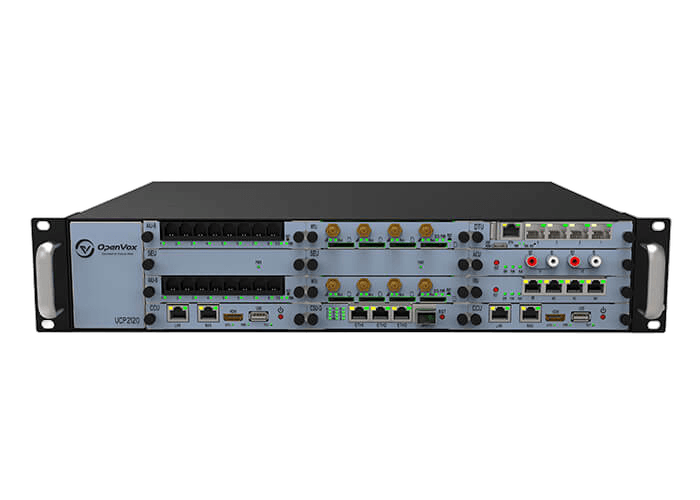

UCP2120
2U chassis for enterprise access aggregation with nine service-board slots, dual-control architecture, and capacity for richer interface-board combinations.
- Enterprise expansion chassis
- 9 service-board slots
- Dual-control architecture

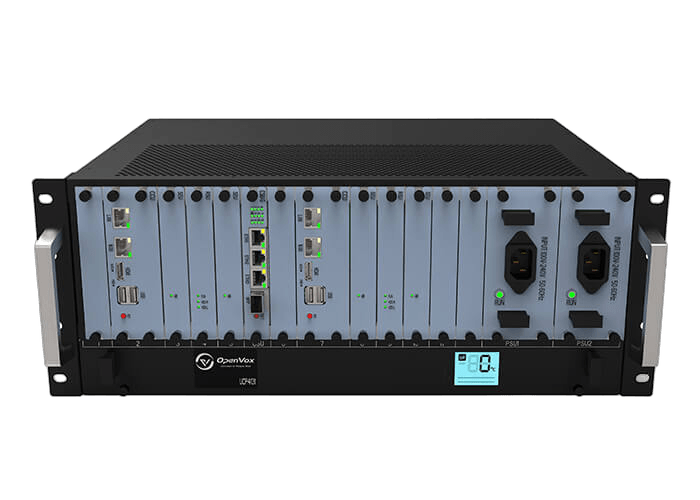

UCP4131
4U high-reliability chassis for core systems that require redundant AC power, dual-control architecture, SEU storage expansion, and UCP4131-only RSU RAID 1 protection.
- High-reliability core chassis
- Redundant AC power
- SEU storage with RSU RAID 1
UCP capabilities for modular communication systems.
UCP turns one hardware platform into an IPPBX core, PSTN/SIP bridge, wireless backup node, dispatch access gateway, or high-reliability communication system by selecting the right boards.
FXS/FXOAnalog access
AIU Analog Interface
Connect analog phones, fax machines, PSTN lines, or other FXS/FXO endpoints through the UCP chassis.
- Use AIU boards when the site needs analog phones, fax machines, PSTN lines, or mixed FXS/FXO access.
- AIU is the most familiar way to explain UCP to customers migrating analog endpoints into an IP communication system.
Proof chips
- AIU-8 / AIU-16
- FXS / FXO endpoints
4G/LTEWireless channels
WTU Wireless Trunk
Add GSM, WCDMA, LTE, or 4G wireless channels for mobile access, backup call paths, and wireless trunk integration.
- Use WTU boards to add cellular channels for mobile trunking, backup call routes, or locations without stable wired access.
- Wireless access can be combined with analog or digital trunks when the chassis has enough service-board slots.
Proof chips
- GSM / WCDMA / LTE / 4G
- Mobile backup paths
E1/T1/J1Digital trunk
DTU Digital Trunk
Bring E1, T1, or J1 digital trunk access into the same modular communication platform.
- Use DTU boards when the project still depends on E1, T1, or J1 trunks.
- This keeps digital public-network access inside the same modular UCP platform.
Proof chips
- E1 / T1 / J1
- PSTN trunk integration
RadioDispatch paths
RIU Radio Interface
Connect radio systems and dispatch environments when voice communication must bridge telephony and radio workflows.
- Use RIU boards to bridge radio systems with dispatch or telephone workflows.
- RIU belongs in command-room, industrial, and specialized communication scenarios where radio paths remain part of daily operations.
Proof chips
- Radio cluster paths
- Dispatch integration
MIUMagneto access
MIU Magneto Interface
Support magneto interface requirements for specialized legacy field communication and industrial voice access.
- Use MIU boards for magneto interface requirements in specialized legacy field communication.
- MIU serves targeted compatibility requirements rather than general-purpose access deployments.
Proof chips
- Magneto interface
- Legacy field voice
AudioInput / output
ACU Audio Control
Provide audio input and output paths for public-address systems, meeting rooms, and dedicated communication rooms.
- Use ACU boards when external audio input or output must connect to the communication system.
- Typical scenarios include public-address links, meeting rooms, control rooms, and dedicated communication spaces.
Proof chips
- Audio input / output
- Public-address access
RAID 1UCP4131 storage
RSU RAID Storage
Provide RAID 1 storage protection for UCP4131 deployments that require mirrored storage together with the supported SEU configuration.
- Use RSU only when a UCP4131 project requires RAID 1 storage protection.
- RSU applies to UCP4131 projects that pair RAID 1 protection with the supported SEU configuration.
Proof chips
- RAID 1
- UCP4131 only
SATAStorage expansion
SEU Storage Expansion
Add SATA storage expansion on supported rackmount chassis for recordings, logs, or local storage requirements.
- Use SEU to add SATA storage on supported rackmount UCP chassis.
- Storage expansion is relevant for recording, logs, or local data needs after the access board mix is clear.
Proof chips
- SATA storage
- Rackmount chassis option
Key features for UCP chassis and board selection.
A concise, source-backed checklist for UCP selection: choose the chassis, understand the control layer, then map service boards to access, dispatch, storage, and reliability requirements.
Chassis first
- UCP1202 desktop chassis
- UCP1600 1U rackmount chassis
- UCP2120 2U rackmount chassis
- UCP4131 4U high-reliability chassis
- 1 to 9 service-board slots
- Built-in or CSU-based switching
- Single, backup, or redundant power designs
Control and access boards
- CSU-F
- CSU-G
- CCU-N-ALDER
- CCU-I-TGL
- AIU-8
- AIU-16
- WTU
- DTU
Audio, radio, storage, reliability
- ACU
- RIU
- SEU
- RSU
- FXS/FXO analog access
- E1/T1/J1 digital trunk access
- UCP4131-only RAID 1 protection
UCP Deployment Scenarios
Deployment scenarios show how UCP chassis and boards combine for IPPBX, PSTN/SIP access, wireless backup, dispatch, audio, and storage requirements.
Deployment pattern
Enterprise IPPBX core
Start with a CCU control board, then add AIU for analog endpoints, DTU for E1/T1/J1 trunks, WTU for wireless channels, and SEU where recording, logs, or local storage are required.
Compare UCP chassis scale, board support, and reliability limits
Use this matrix to compare chassis capacity, control and switching support, service-board compatibility, storage expansion, and RAID availability.
| Specification | UCP1202 | UCP1600 | UCP2120 | UCP4131 |
|---|---|---|---|---|
| Chassis Scale | ||||
| Form Factor | Desktop | 1U rackmount | 2U rackmount | 4U rackmount |
| Dimensions | 50 x 188 x 202 mm | 44 x 434 x 330 mm | 88 x 434 x 330 mm | 176.8 x 435.8 x 330 mm |
| Control Slots | 1 | 1 | 2 | 2 |
| Service Slots | 1 | 4 | 9 | 9 |
| Power Design | Single DC input | Single AC input | 1+1 power backup | 2 redundant power slots |
| Control And Switching | ||||
| CSU-F Switching Board | No | Yes | Yes | Yes |
| CSU-F Port Spec | No CSU board | 2 x 100M ETH | 2 x 100M ETH | 2 x 100M ETH |
| CSU-G Switching Board | No | Yes | Yes | Yes |
| CSU-G Port Spec | No CSU board | 3 x 1000M ETH + 1 x SFP | 3 x 1000M ETH + 1 x SFP | 3 x 1000M ETH + 1 x SFP |
| CCU-N-ALDER Control Board | Yes | Yes | Yes | Yes |
| CCU-I-TGL Control Board | No | No | Yes | Yes |
| Dual Control Support | No | No | Yes | Yes |
| Service Boards | ||||
| AIU Analog Access | AIU-8 / AIU-16 | AIU-8 / AIU-16 | AIU-8 / AIU-16 | AIU-8 / AIU-16 |
| WTU Wireless Access | GSM / WCDMA / LTE / 4G | GSM / WCDMA / LTE / 4G | GSM / WCDMA / LTE / 4G | GSM / WCDMA / LTE / 4G |
| DTU Digital Trunk | E1/T1/J1 | E1/T1/J1 | E1/T1/J1 | E1/T1/J1 |
| ACU / RIU Audio And Radio | Audio / radio paths | Audio / radio paths | Audio / radio paths | Audio / radio paths |
| Storage And Reliability | ||||
| SEU Storage Expansion | No | Yes | Yes | Yes |
| RSU RAID Storage | No | No | No | Yes |
| Reliability Positioning | Compact single-control chassis | Rackmount with SEU option | Dual-control architecture | Dual-machine hot standby, redundant power, RAID protection |
